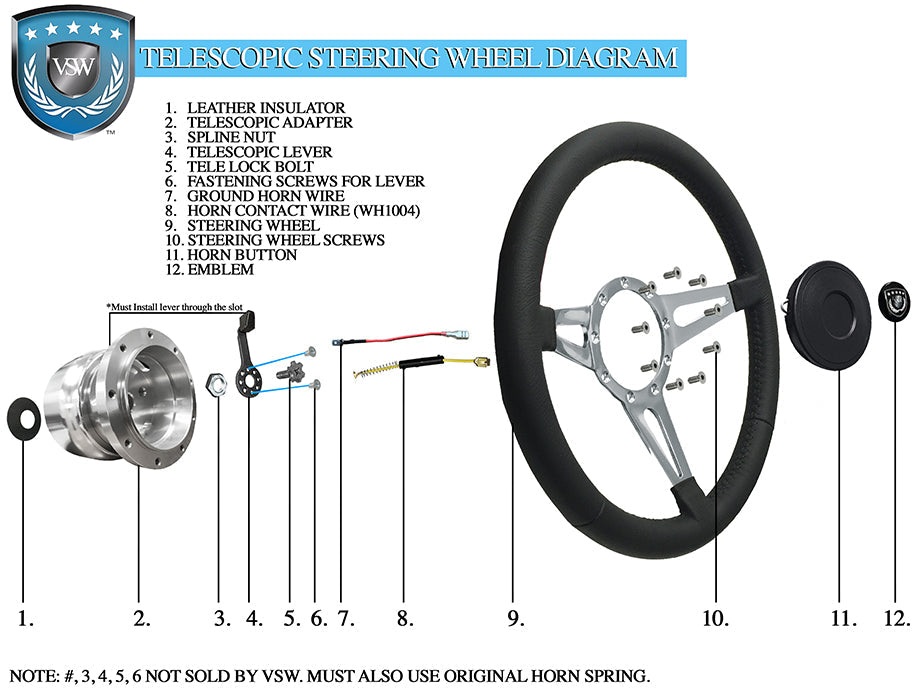

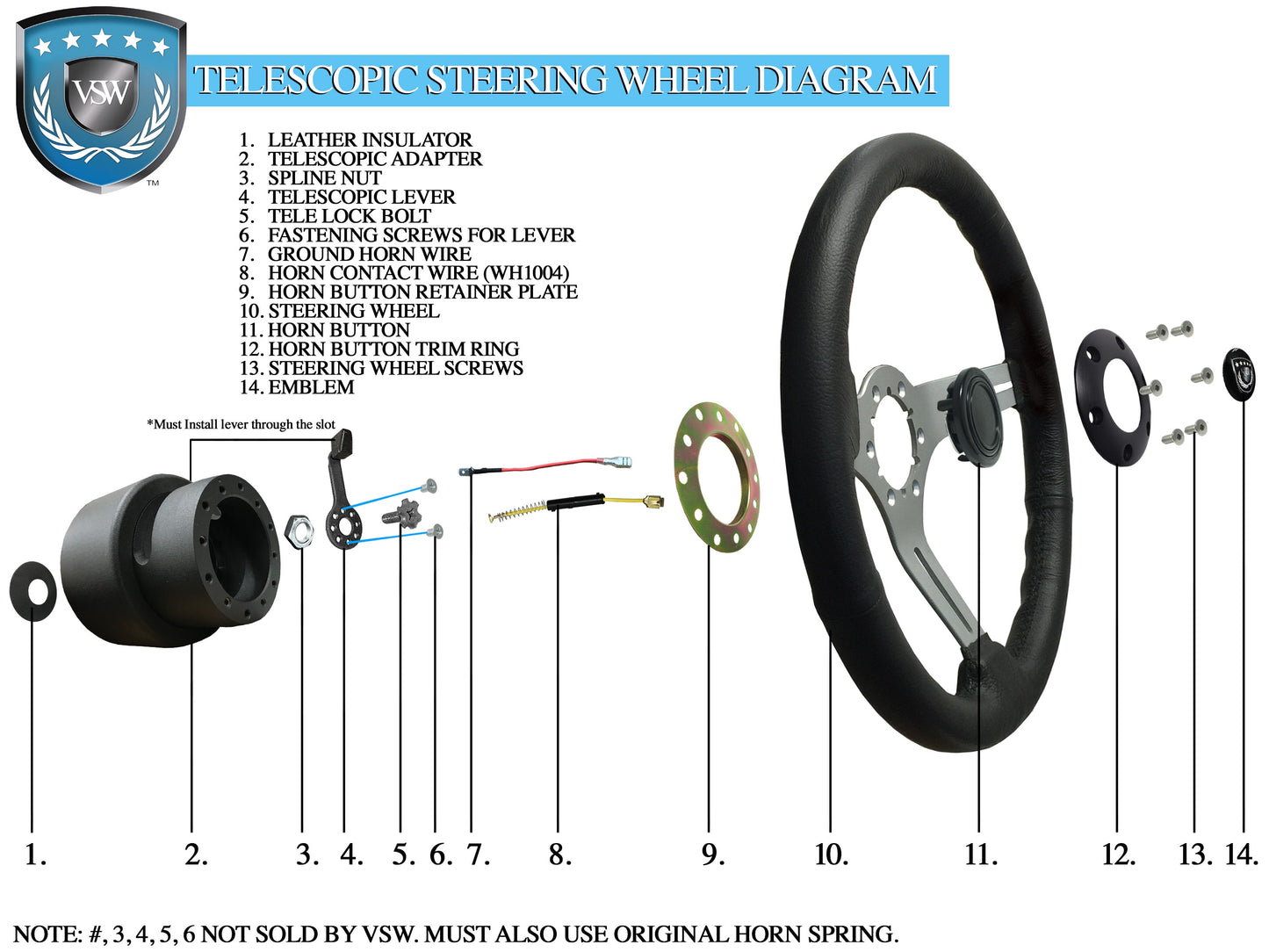

GM S6 & S9 Telescopic Steering Wheel Diagram

THIS IS NOT A PHYSICAL PRODUCT. THIS IS FOR REFERENCE ONLY.

The following VSW 6-Bolt and 9-Bolt Steering Wheels diagram is applicable for the following applications

• 1969-89 GM Telescopic Columns

Applicable Hub Adapters:

1. STH1036 (For 9-Bolt Steering Wheels)
2. Pairs with any VSW S9 (9-Bolt) Steering Wheels
3. Compatible with any VSW S9 Horn Button

1. STH1040 (For 6-Bolt) Steering Wheels
2. Pairs with any VSW S6 (6-Bolt) Steering Wheels
3. Compatible with any VSW S6 Horn Buttons

NOTE: We highly encourage professional install.
